AK Trunnion Rivet Hole Drilling Fixture

CODE:

T3-11

Write a review

$99⁹⁵

In Stock

Mandrel:

+ −

Ask a question

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Mandrel
$99⁹⁵	In Stock + −	T3-11	Mandrel: Red & Blue
$114⁹⁵	In Stock + −	T3-22	Mandrel: Red Blue and Green

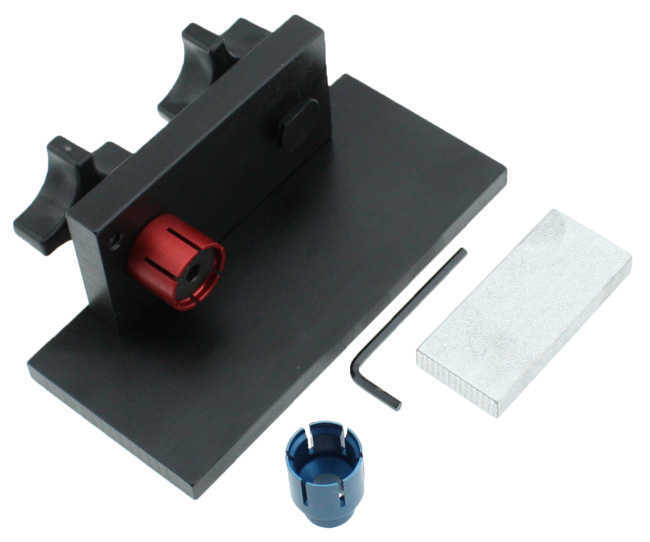

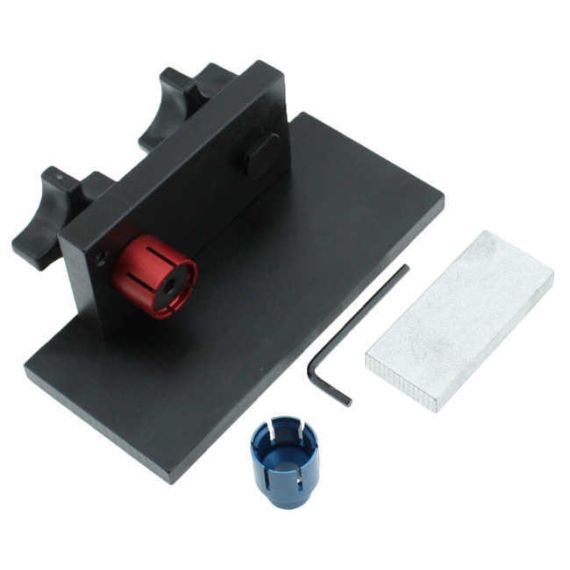

AK-Builder AK Trunnion Rivet Hole Drilling Fixture with red 7.62mm and blue 5.45mm mandrels.

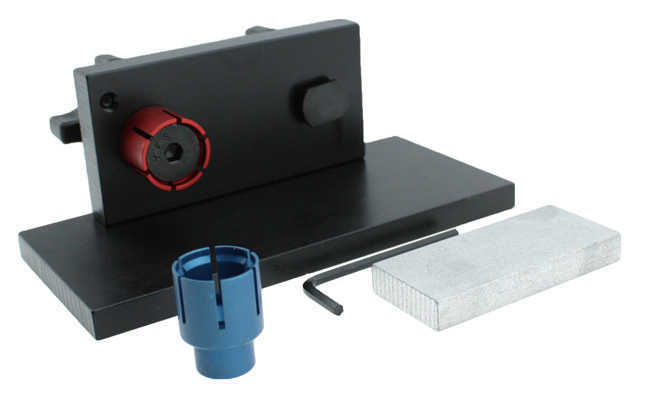

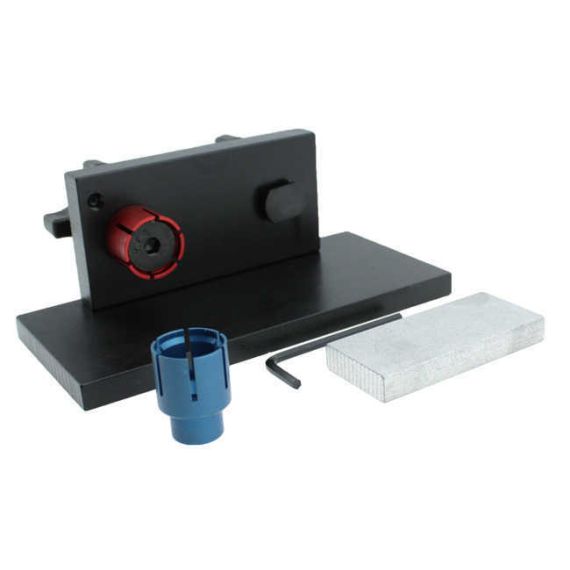

AK-Builder black AK Trunnion Rivet Hole Drilling Fixture, red 7.62, blue 5.45 expanding mandrels.

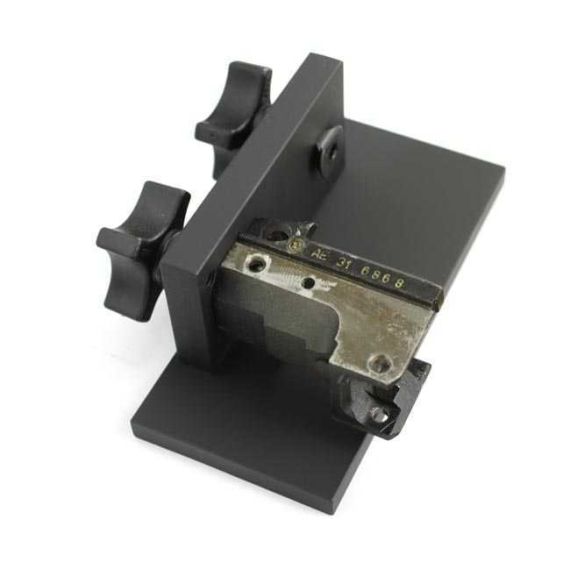

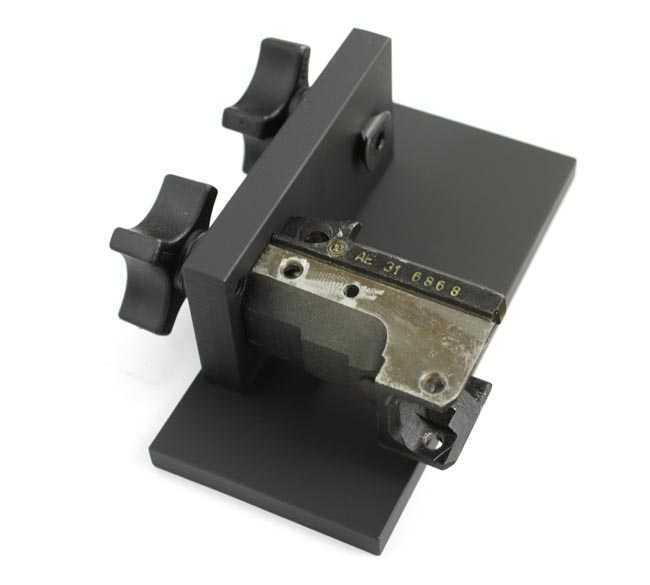

Angled view of AK-Builder black anodized rivet drilling fixture clamping an unfinished AK front trunnion.

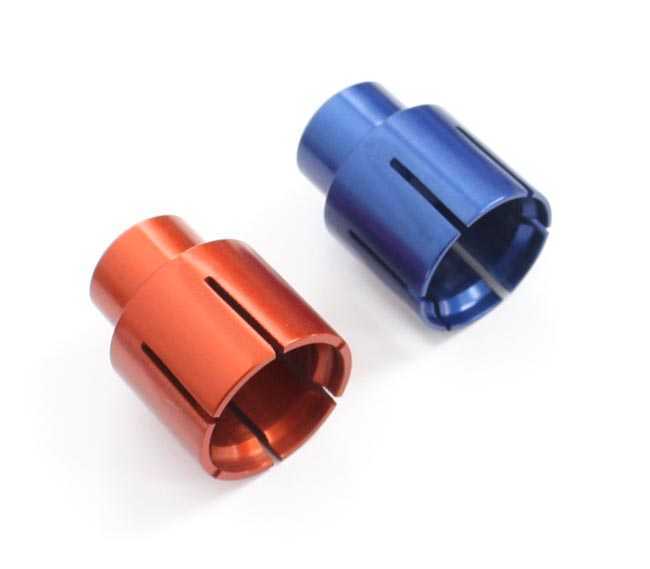

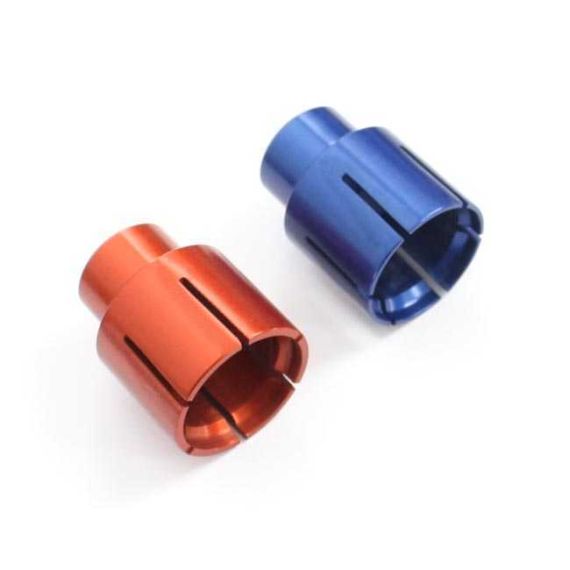

AK-Builder red 7.62 and blue 5.45 anodized expanding trunnion mandrels.

Description
Attachments
Related Products
Reviews

Here is a professional tool for drilling the front and rear trunnion holes in AK47 receivers.

This tool will work with 7.62 and 5.45 trunnions using two different expanding mandrels that fit into the trunnion. The red mandrel fits the 7.62 and the blue fits the 5.45. The tool now comes with both the red 7.62 and blue 5.45 mandrels and the green MAK90 mandrel is an option.

Any rear trunnion can be mounted to be drilled so you aren't limited to just one style. It will also accept bulged front trunnions.

The one meg worth of photo instructions for using this tool can be found on this page.

drilling fixture

Instructions (drilling_fixture.pdf, 237 Kb) [Download]
