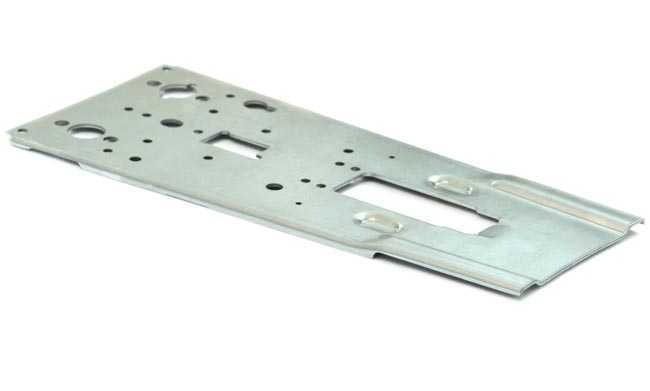

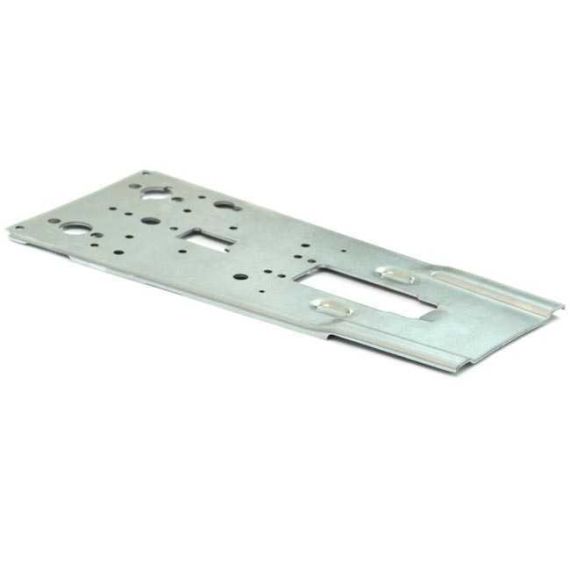

Yugo M70 1.5mm Yugo Underfolder Flat

B3-31

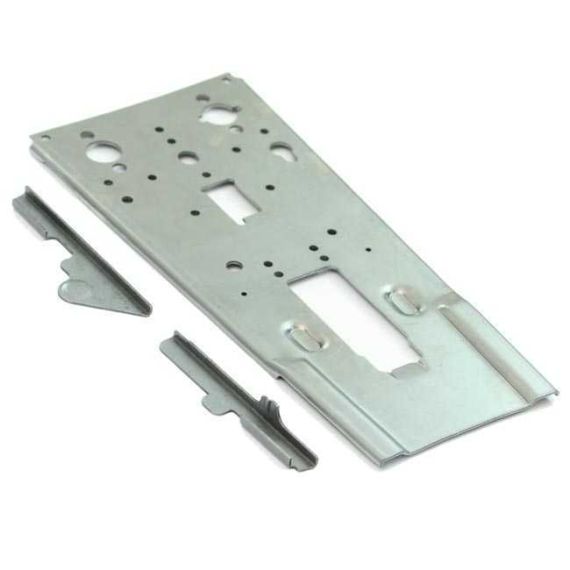

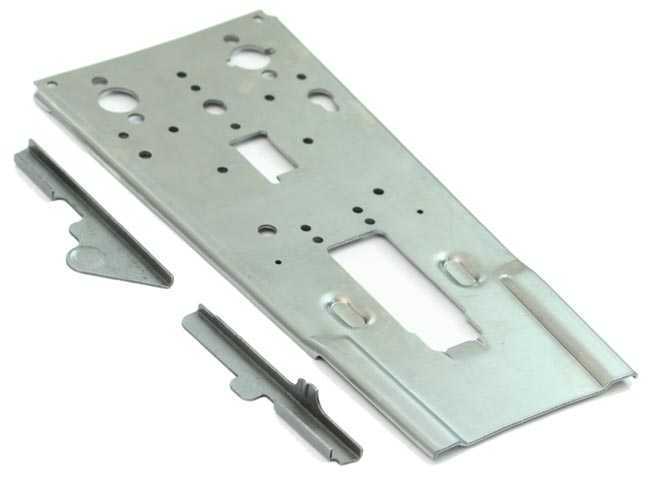

Finally there is an alternative to the home builder to make your own professional grade 1.5mm receiver from a flat. The material these are made from is .063 4130 Chromoly steel that is in the annealed condition. Yes annealed means it needs to be heat treated. Yes the flats come with rails as always and both are made from annealed 4130 and are .050" thick. The mag stabilizers/guides need to be trimmed just like all of my other rails. There are no front trunnion holes drilled and the hammer, trigger and center support holes need to be drilled also. This is to allow you to make the receiver like it should be done to be as perfect as possible. Holes that are too close to a bend will stretch which is bad for the trigger pin holes.

THIS IS NOT FOR THE M85





This item is made in the United States and counts as a 922r compliant part.

Receiver Thickness
1.5mm
0.0
B6-31
Rivet head drilling tool — heat-treated steel, includes 5/32" drill bit. Designed for removing trunnion rivets from AK parts kits.
$3795
In Stock
+
T5-11
The AK-Builder Riveting Tool is the proven standard for precision AK builds. It installs front and rear trunnion rivets, center supports, and scope rails with perfect alignment and professional results — crafted from heat-treated 4140 steel and trusted by builders worldwide. (Does not install trigger guard rivets.)
$27000
In Stock
+
0.0
A0-11
The new long rear trunnion rivets have a slightly shorter head and the cupped tool that supports the rivets will need to be sanded down to keep the tool from touching the receiver.  Be sure to check this before installing the new black rivets. These have the correct swell...

Options:

PSL/FPK AKM Fixed Stock AK74 Sidefolder AK74 Fixed Stock AKS Underfolder Yugo M92/M70 1mm Underfolder Yugo M70/M72 Fixed Stock Yugo M70 1.5mm Underfolder Bulgarian RPK 74 Chinese Mak 90 (More +3)
OptionsPSL/FPK
$1400
In Stock
+
0.0
C8-51
These are made from heat treated 4130 steel and the rivets are a copy of an original AK center support rivet. The length is shorter than the 1mm center supports since the inside of the 1.5mm flats is smaller
$700
In Stock
+
