Yugo Oversize Barrel Pin .302

CODE:

C8-62

Write a review

$6⁹⁵

In Stock

+ −

Ask a question

Heat treated 4140 steel Yugo oversize barrel pin, .302 inch diameter.

Description
Related Products
Reviews

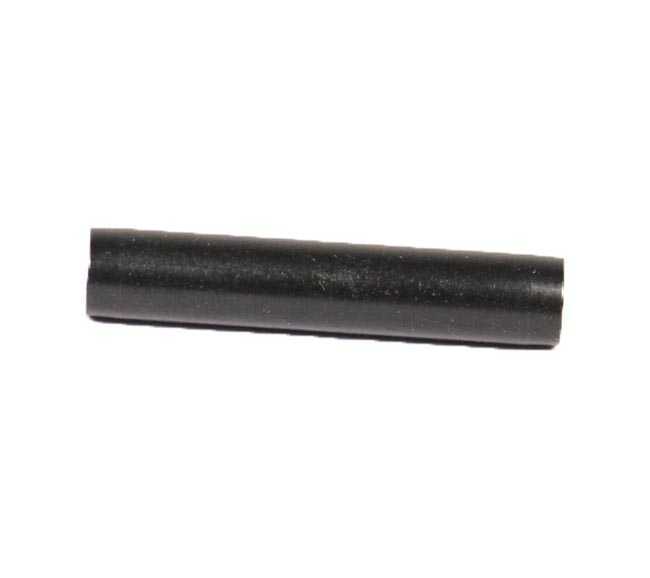

Yugo Oversize Barrel Pin — .302" (7.67 mm)

Oversize barrel pin for Yugo-pattern receivers (M70/M72 and M92). Machined from 4140 steel and heat treated for strength and durability. Measures .302" (7.67 mm) diameter and 1.435" (36.45 mm) long.

Standard-size Yugo pins are also available. Sold each.

Features

Diameter: .302" (7.67 mm)
Length: 1.435" (36.45 mm)
Material: 4140 steel, heat treated for hardness and longevity
Intended for headspace correction, repair work, or use with surplus barrels/trunnions that have enlarged pin holes
Fits bulged-trunnion Yugo receivers and Yugo M92

Installation / Fitment Notes

Prepare hole with a 7.0 mm drill, then finish with a .300" reamer for the correct press fit.
Always recheck headspace after installation.
Barrel pin removal and installation tools are available.

7mm Screw Machine Drill Bit

0.0

CODE:

C1-73

US Made by Precision Twist Drill Screw Machine - Drills Size: 0.2756 In., 7.00 mm Flute Length: 1-11/32, 34 mm Overall Length: 2-29/32, 74 mm Finish/Coating: Black Oxide Point Angle°: 135 Point Type: Split

$6²⁵

Quantity:

+ −

.300" Barrel Pin Reamer

0.0

CODE:

A2-32

This is the same reamer we use to work with the .302 barrel pin holes. Drill the hole first with a 7mm drill then ream the hole. The reamer has more flutes than a drill and makes a more precise hole. Be sure the chuck on your drill has the least amount of wobble as possible to...

$39⁹⁵

Quantity:

+ −

No reviews found
