16" AIMS-74 5.45x39 US Cold Hammer Forged Nitride Barrel

CODE:

N-60

Write a review

$174⁹⁵

$204⁹⁵ -15%

In Stock

Journal Size:

+ −

Ask a question

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Journal Size
$174⁹⁵ $204⁹⁵	In Stock + −	L5-12	Journal Size: Standard 0.908
$174⁹⁵ $204⁹⁵	In Stock + −	N-60	Journal Size: Oversized 0.911

Save 15%

Description
Features
Related Products
Reviews

These are US made Hammer Forged barrels.

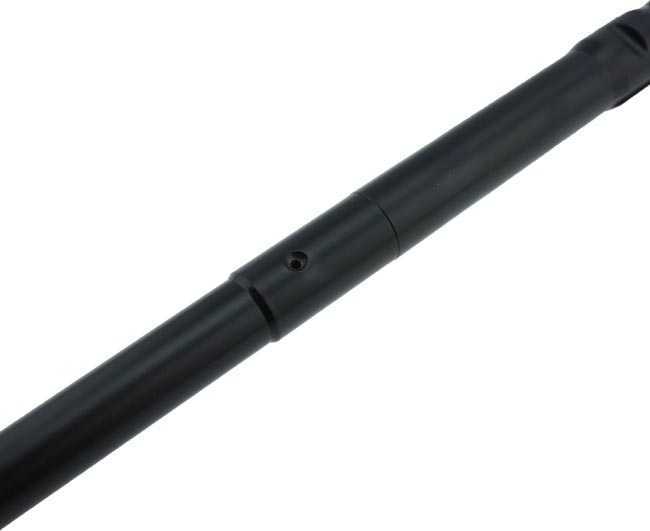

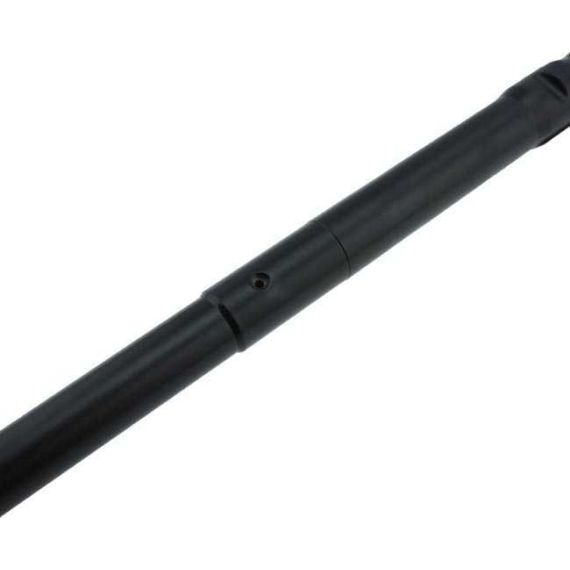

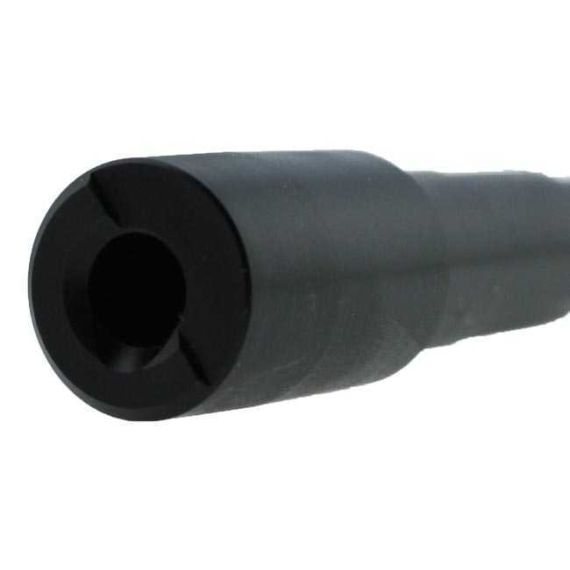

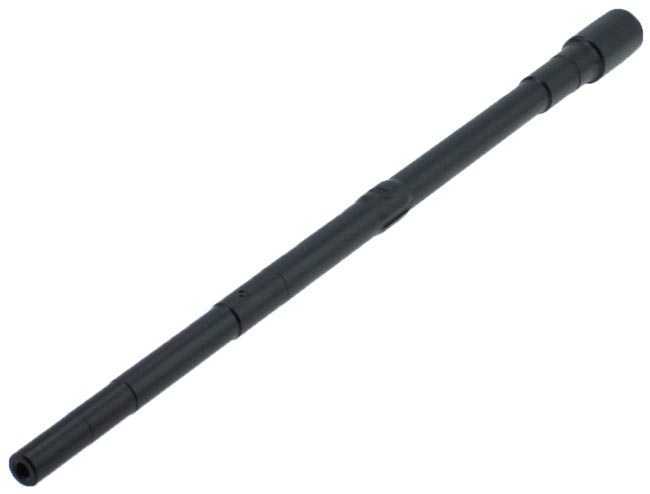

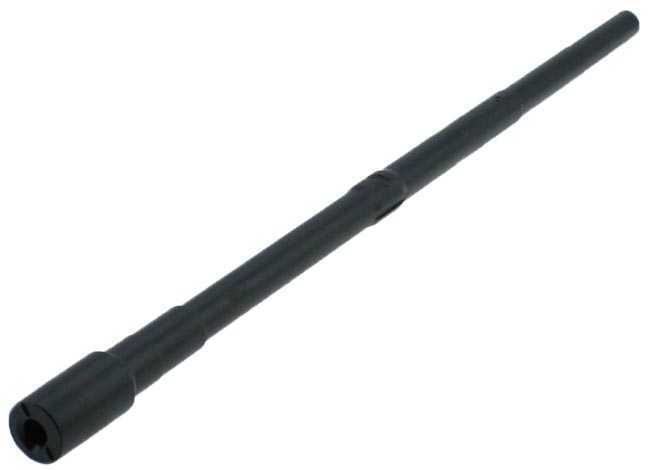

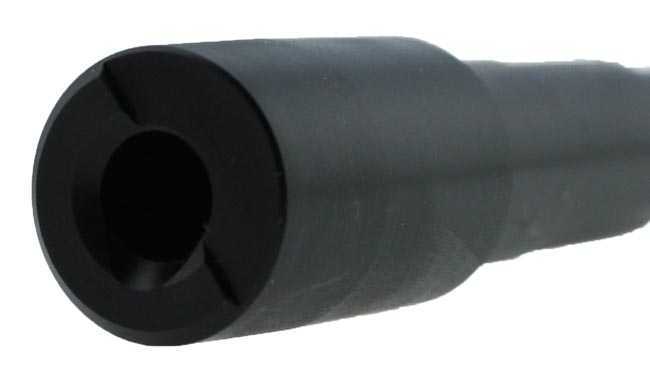

These USA new production AIMS-74 barrels are copies from a factory original Romanian Military AIMS-74 take off. We are making these in house out of 4150 barrel blanks, then sending them out to be nitrided. The AK-Builder AIMS-74 barrels have the extractor cuts, and handguard retainer cuts pre-machined. We have also dimpled where the gas port goes. The gas port is NOT drilled through. These barrels have a 1-8 twist. Barrels are ready for population.

We suggest measuring the bore of your front trunnion before ordering. The standard press fit size is 0.908". Many of the parts kits brought into the country where oversized, therefore you may need an "oversized" barrel. Measuring before you buy will save you money in shipping.

This item is made in the United States and counts as a 922r compliant part.
