Home/Barrels/16" Type 3 Milled 7.62x39 Non-Chrome Barrel 26mm x 1.5 RH trunnion threads

16" Type 3 Milled 7.62x39 Non-Chrome Barrel 26mm x 1.5 RH trunnion threads

CODE:

D8-41

Write a review

$179⁹⁵

In Stock

Options:

+ −

Ask a question

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Options
$179⁹⁵	In Stock + −	D8-41	Options: Non-Chrome

Type 3 Milled NON-CHROME 7.62x39 Barrel 26mm x 1.5 RH Trunnion Threads

Description
Features
Related Products
Reviews

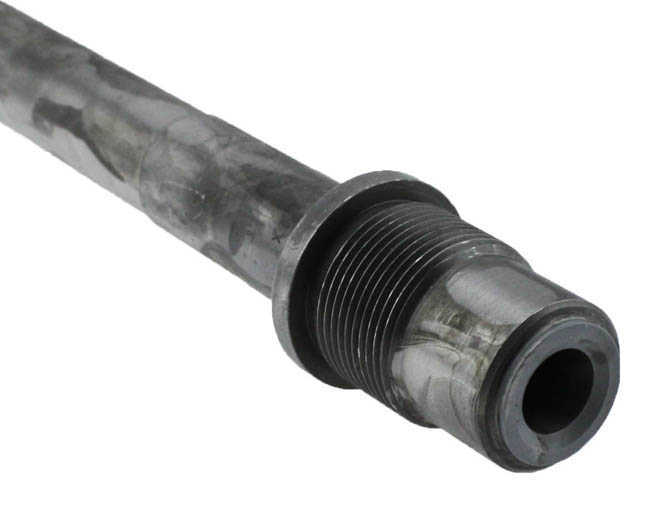

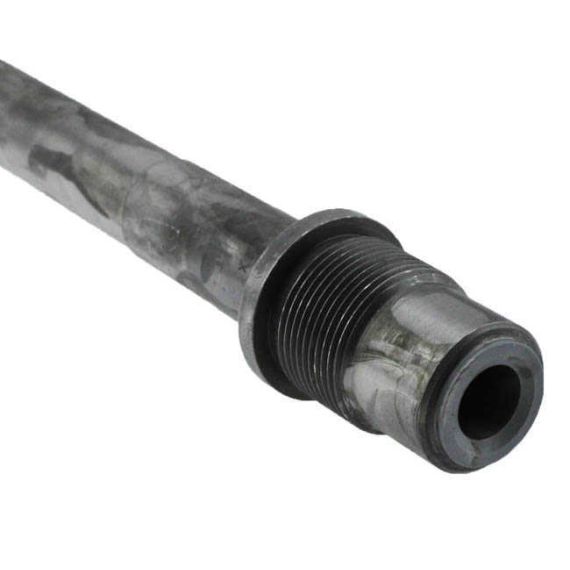

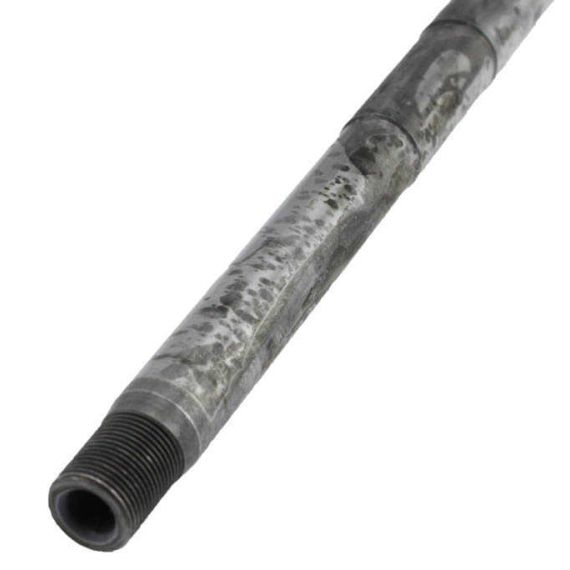

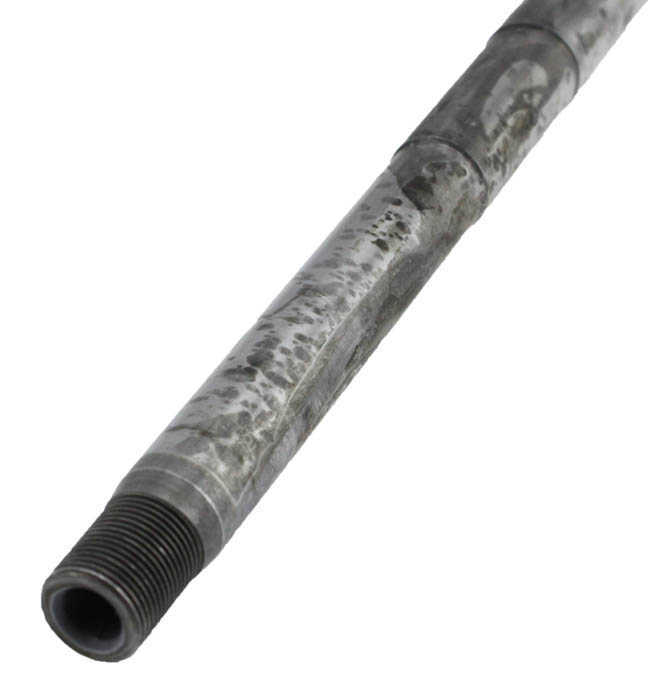

Type 3 Non Chrome Lined Barrel 16.330" reference length. Trunnion threads are 26mm-1.5 right hand with a 14-1lh threaded muzzle.

The Russians marked the original barrels 1-5 depending on the headspace. This distance was measured from the back of the headspace gauge to the barrel shoulder that seats against the trunnion. All of our barrels have been turned as #1's which is the shortest allowable distance. This will give the builder plenty of room should they need to adjust the depth by facing off material from the shoulder to thread deeper into the trunnion. The barrels DO NOT have the handguard retainer cuts nor the extractor clearance cuts. These will need to be done after setting the headspace.

These barrels are in WHITE

These are made from 4150 steel.
